7CH

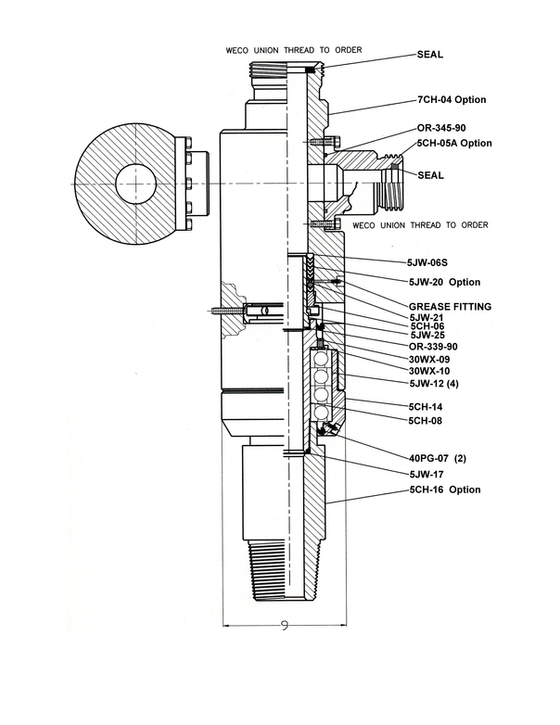

Unleash the power of the 7CH Swivel, a cutting-edge circulating head type swivel tailored for on-shore oilfield drilling. Built with the same reliability as the 5CH but with an impressive 10,000 PSI max pressure rating, this swivel excels in high-pressure environments. Boasting alloy steel construction, angular contact ball bearings, and a grease-lubricated assembly, it ensures optimal performance. The adjustable V-Ring Packing Assembly, optional connections, and a 2-7/8 in. fluid passage make the 7CH a top choice for demanding drilling applications, redefining efficiency and durability.

LENGTH

38 in.

max pressure

10,000 PSI

watercourse

2-7/8" I.D.

hose connection

WECO Union

weight

315 lb.

static load

Pressure load only

Width

9 in.

lower connection

4-1/2" IF right-hand pin


PACKING OPTIONS



  • Adjustable V-Ring Packing Assembly

  • ​

  • High pressure capability

APPLICATIONS

FEATURES

BENEFITS

On-shore Oilfield

Adjustable V-Ring Packing Assembly

Great radial load support

High pressure capability

Download
